Fanuc R2000i/165F RJ3i model B
Brand | Fanuc |
---|---|
Max. Load (kg) | 165 |
Arm Reach (m) | 2.65 |
Axis | 6 |
Repeatability (mm) | 0.20 |
Robot weight (kg) | 1210 |
Mounting | Floor |

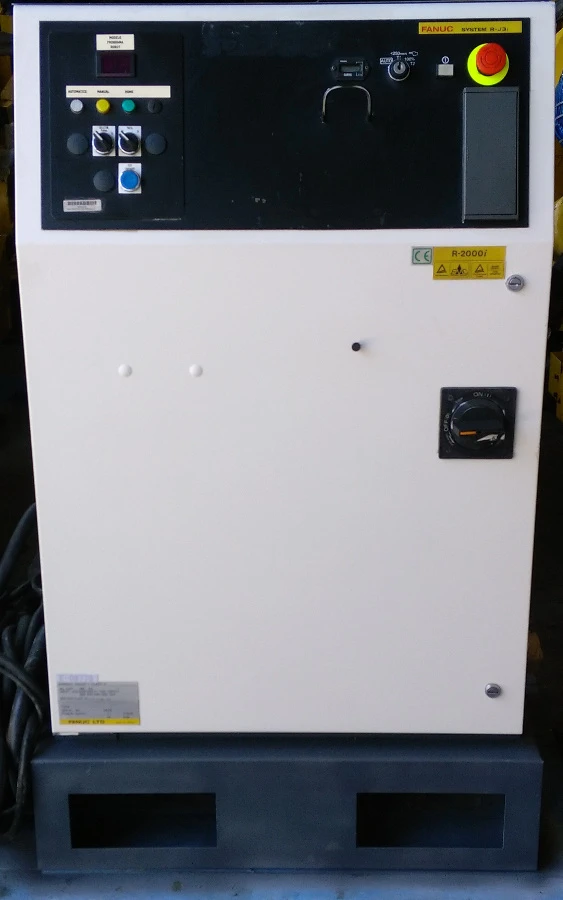

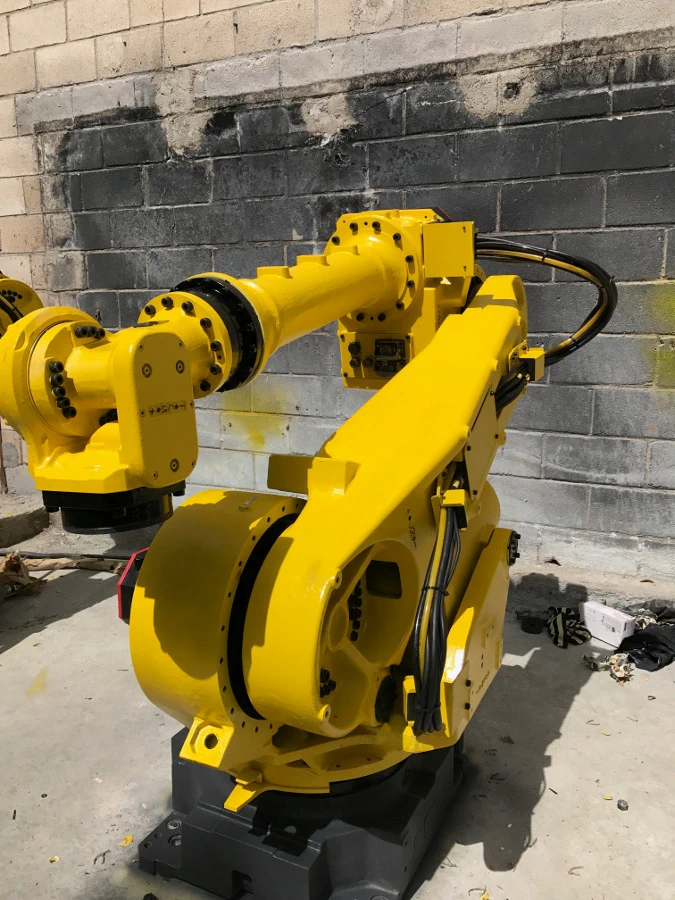

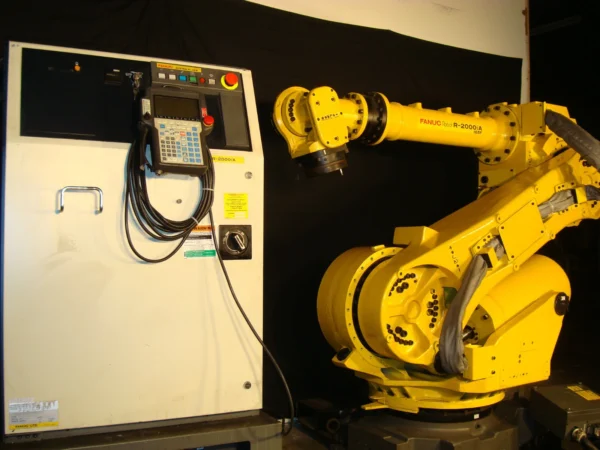

Fanuc R2000i with RJ3i model B controller industrial robot is a 6 axis robot used by automotive companies worldwide. It is among the fastest robot arms in its class. This makes the R2000i very useful in many applications where the ability to fit in confined spaces is important, even the narrow wrist helps in this. The wrist of the R2000i has an IP rating of IP67 and the rest of the arm is IP54. Lower arm is single sided; this allows the robot to “flip over” and work behind itself. The arm is light, fast and compact so it is without a doubt a very multipurpose robot. The R2000i comes with the Fanuc RJ3i model B controller. Benefits of the RJ3i model B include fast boot up time, excellent connectivity, powerful programming language, built in safety circuits, expandable I/O and bus options.
Technical Data: • Payload: 165 Kg. • Arm Reach: 2650 mm. • Repeatability: 0,2 mm. • Controller: RJ3i model B |
Axis motion speed: • Axis 1: 105º/s • Axis 2: 105º/s • Axis 3: 105º/s • Axis 4: 130º/s • Axis 5: 130º/s • Axis 6: 210º/s |
