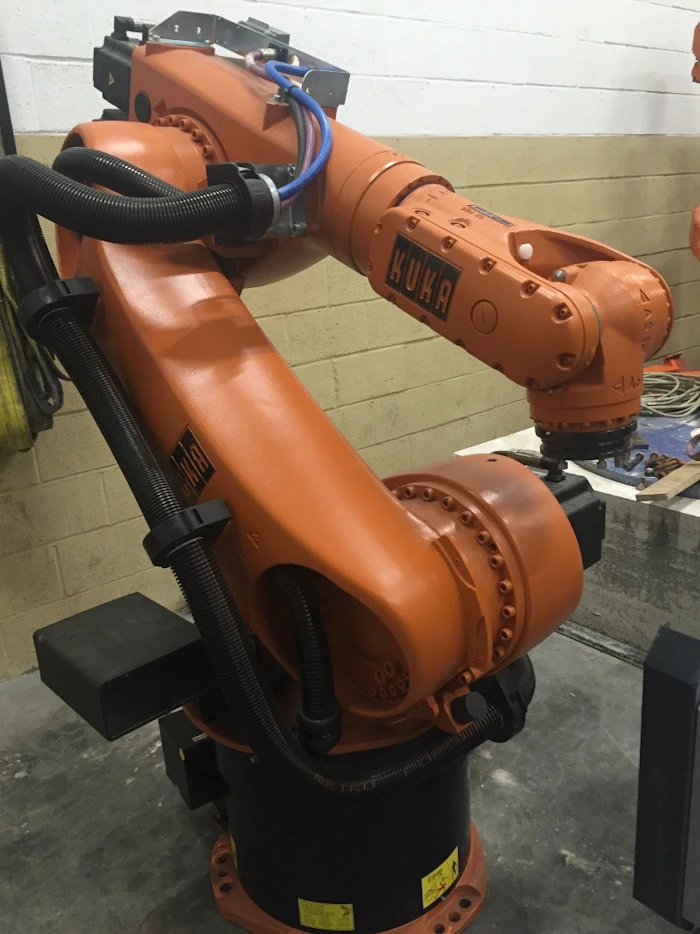

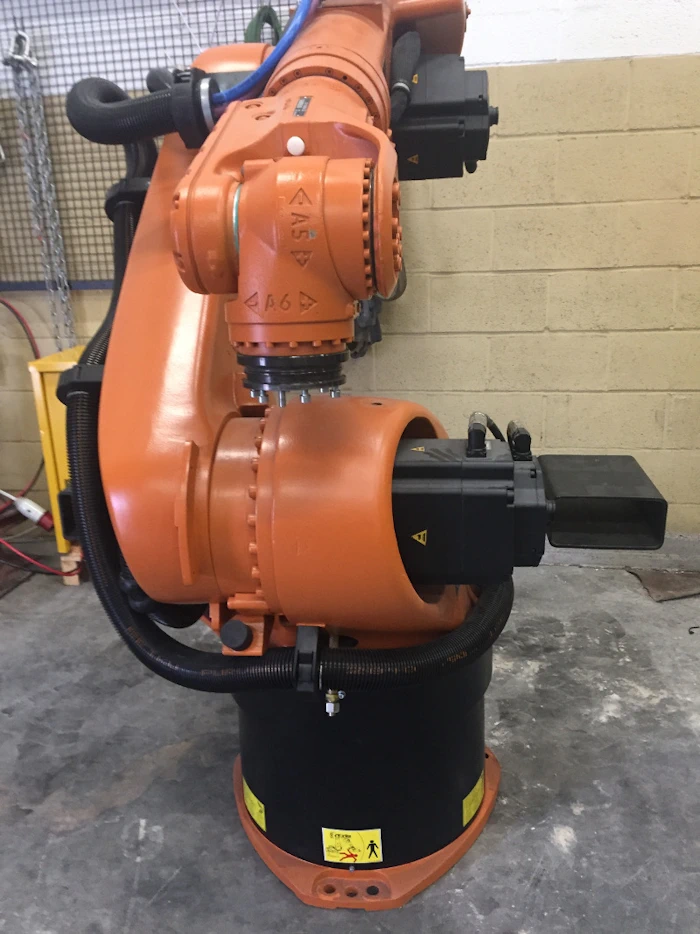

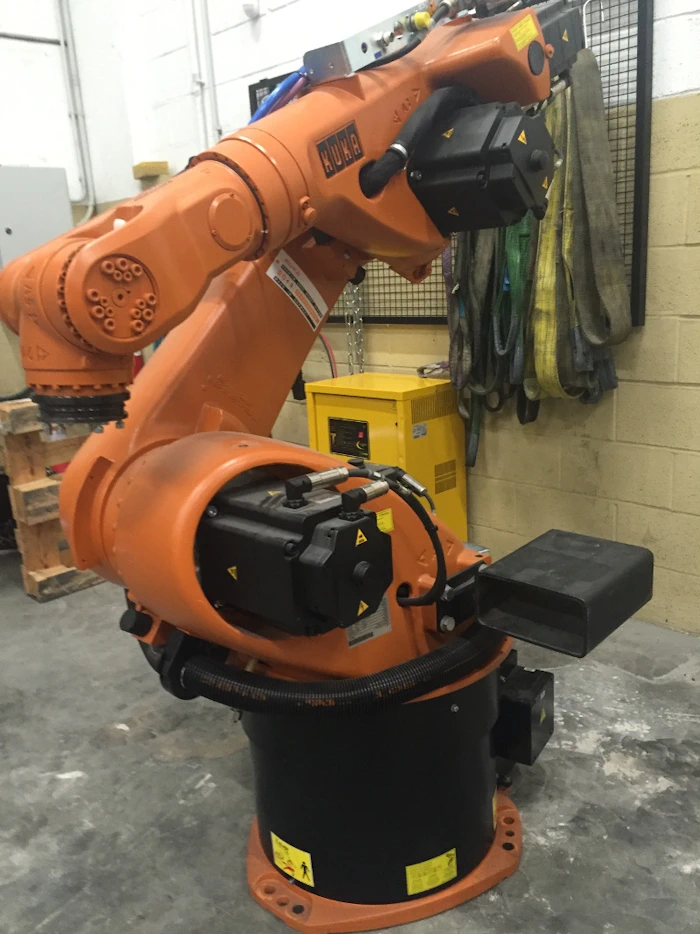

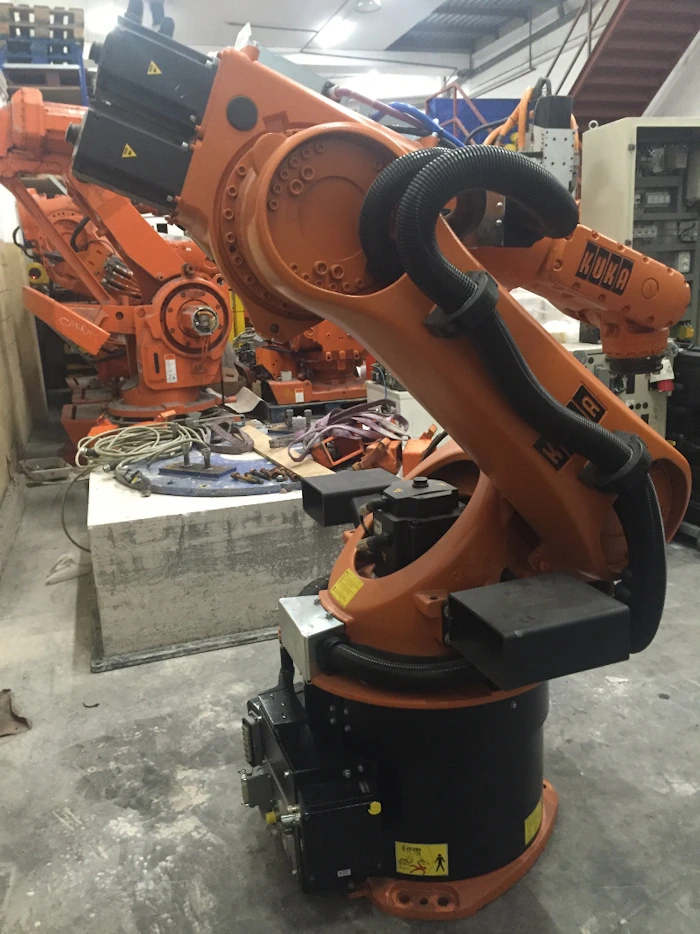

KUKA KR 60/3 KRC2 Ed05
| Brand | Kuka |
|---|---|
| Max. Load (kg) | 60 |
| Arm Reach (m) | 2.03 |
| Axis | 6 |
| Repeatability (mm) | 0.06 |
| Robot weight (kg) | 665 |
| Mounting | Floor |
KR60/3 is the Heaviest payload version of the medium payload robot range. This robot is suitable for off-line Cad-Cam machining, general handling, polishing, etc... Robust and reliable and at the same time fast and accurate. Equipped with the KRC2 Ed05 controller on WinXP platform. The KRC2 Ed05 robot controller makes programming easier with its Microsoft Windows interface. It is expandable, can be integrated into networks via a bus, and contains ready-made software packages.
| Technical Data: • Payload: 60 kg • Arm reach: 2033 mm |
Axis motion speed: • Axis 1: 140º/s • Axis 2: 120º/s • Axis 3: 140º/s • Axis 4: 260º/s • Axis 5: 245º/s • Axis 6: 322º/s |
