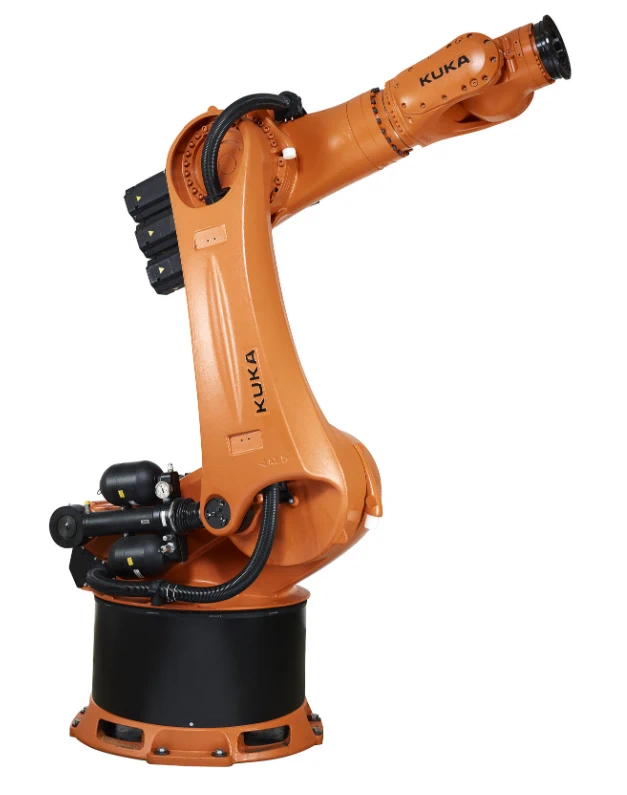

KUKA KR 350/240
| Brand | Kuka |
|---|---|
| Max. Load (kg) | 350 |
| Arm Reach (m) | 2.90 |
| Axis | 6 |
| Repeatability (mm) | 0.25 |
| Robot weight (kg) | 2440 |
| Mounting | Floor |
The Kuka KR350 is a very large payload. Compared to the KR125-150-200 series the KR350 is bigger and more curvy. The KR350 has got a deft touch however. Suitable for heavy lifting applications the KR350 is also very good for high precision grinding, deburring and boring applications. The arm is very stiff and can handle very large loads easily. The arm is largely constructed of aluminum making it nearly half the mass of a comparable other brand robot. This means it is faster and more energy efficient.
| Technical Data: • Payload: 350/280/240Kg. • Arm Reach: 2535/2735/2935 mm. |
Axis motion speed: • Axis 1: 75º/s • Axis 2: 75º/s • Axis 3: 75º/s • Axis 4: 102º/s • Axis 5: 100º/s • Axis 6: 154º/s |
