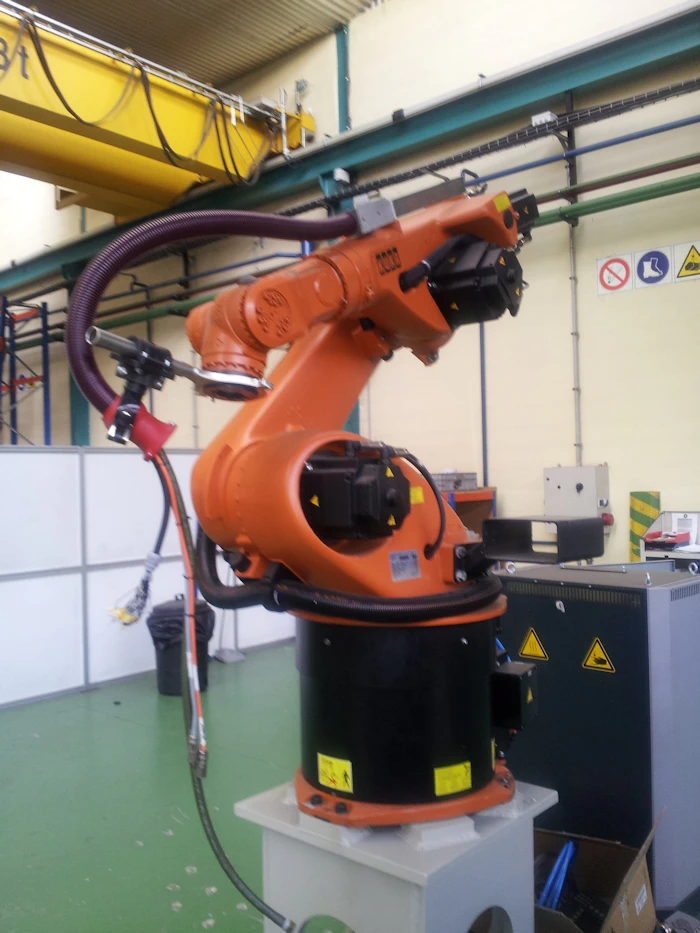

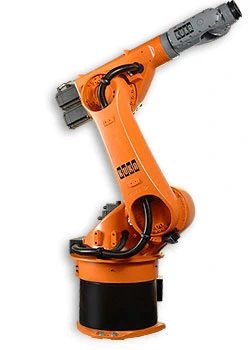

KUKA KR 30-3 KRC2 Ed05
| Brand | Kuka |
|---|---|
| Max. Load (kg) | 30 |
| Arm Reach (m) | 2.03 |
| Axis | 6 |
| Repeatability (mm) | 0.06 |
| Robot weight (kg) | 665 |
| Mounting | Floor |
New version of the wellknown KR30/2, faster and with a lighter body. Medium payload robot suitable for handling, machining, welding, etc.. These applications rquire where short time cycles and high accuracy This is a high accuracy HA version, with a 0,06 mm accuracy.
| Technical Data: • Payload: 30Kg. • Arm Reach: 2030 mm. • Repeatability: 0.06 mm. • Controller: KRC2 Ed05 |
Axis motion speed: • Axis 1: 140º/s • Axis 2: 126º/s • Axis 3: 140º/s • Axis 4: 260º/s • Axis 5: 245º/s • Axis 6: 322º/s |
Are you interested in this robot? Write to us!
