KUKA KR 210L180-2 2000
| Brand | Kuka |
|---|---|
| Max. Load (kg) | 180 |
| Arm Reach (m) | 2.90 |
| Axis | 6 |
| Repeatability (mm) | 0.06 |
| Robot weight (kg) | 1285 |
| Mounting | Floor |

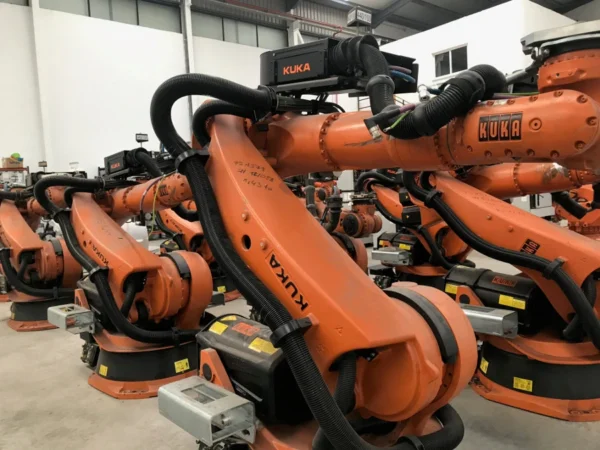

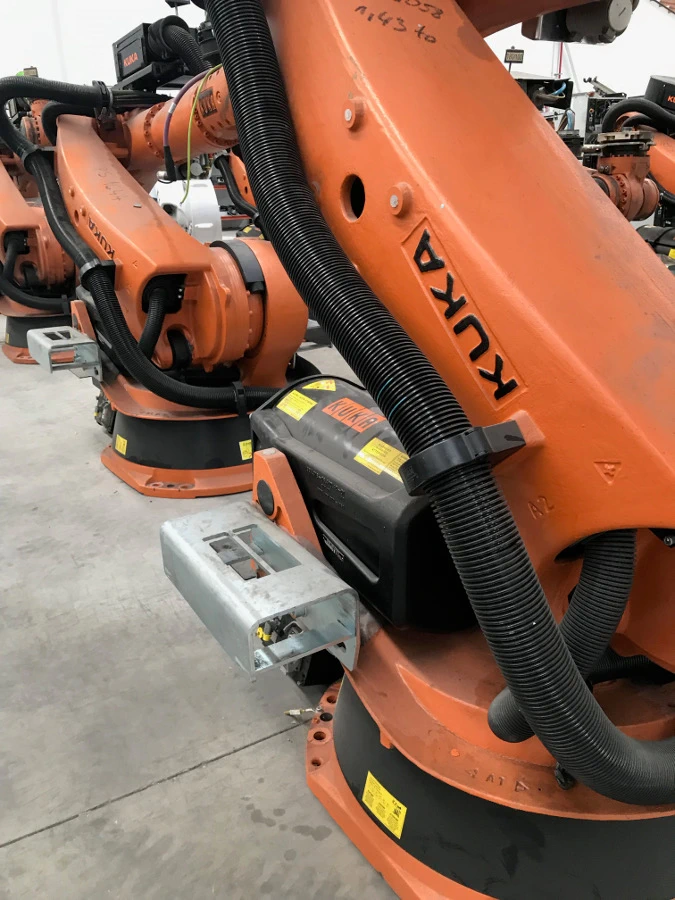

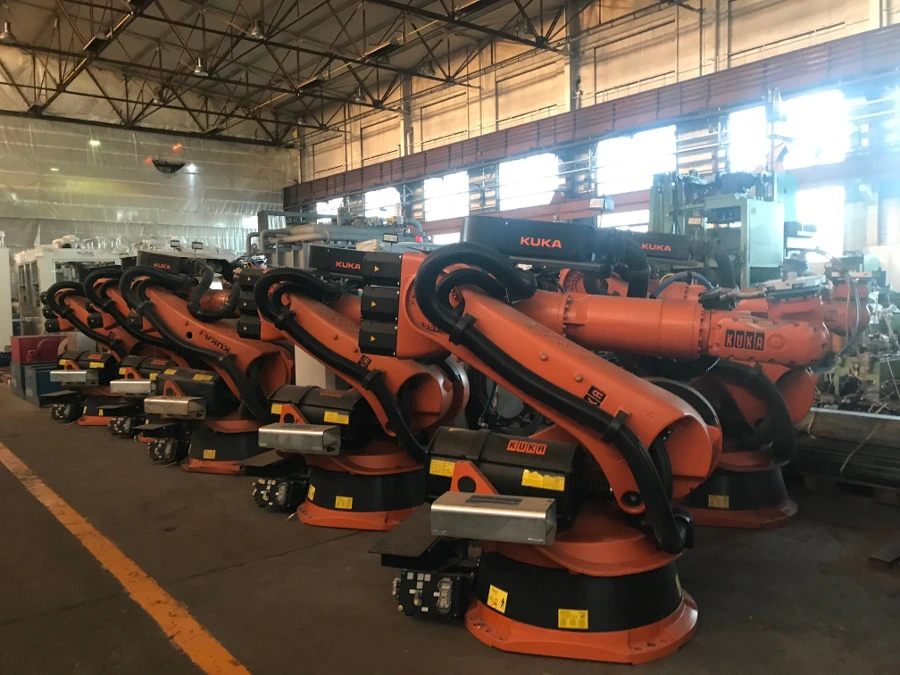

The KR 210L180-2 2000 KRC2 Edition05 is an industrial robot offering a spherical working area, ideal for environments where space optimization is required. It comes equipped with the KRC2 Edition05 controller, which operates under Windows XP. This controller makes programming easier through a Windows-based user interface. Additionally, it is expandable and can be connected to networks via a bus, allowing integration with other tools. The KRC2 Edition05 stands out for its open PC technology and network compatibility. It also features free ports for adding additional axes and supports bus systems like Device Net and Ethernet. With diskette and CD-ROM drives, it allows easy data backup. Its intuitive interface, along with the KUKA-Control-Panel (KCP) programming console, makes operation and configuration extremely simple.
| Technical Data: • Payload: 180 kg • Arm reach: 2900 mm |
Axis motion speed: • Axis 1: 86º/s • Axis 2: 84º/s • Axis 3: 84º/s • Axis 4: 100º/s • Axis 5: 110º/s • Axis 6: 184º/ |
Are you interested in this robot? Write to us!
