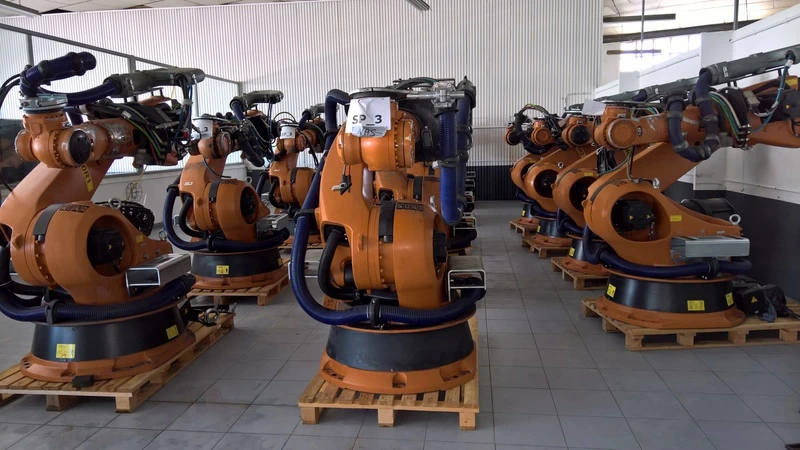

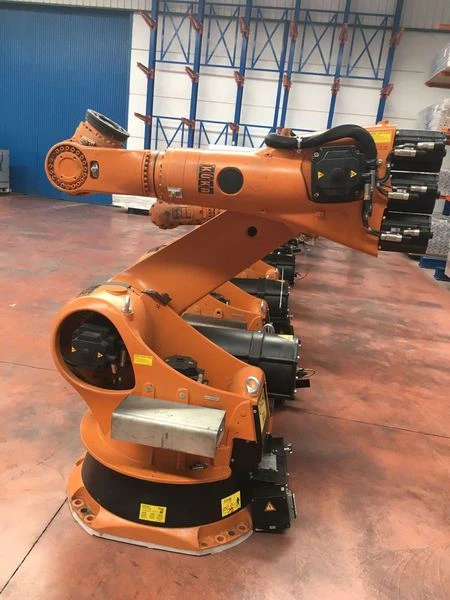

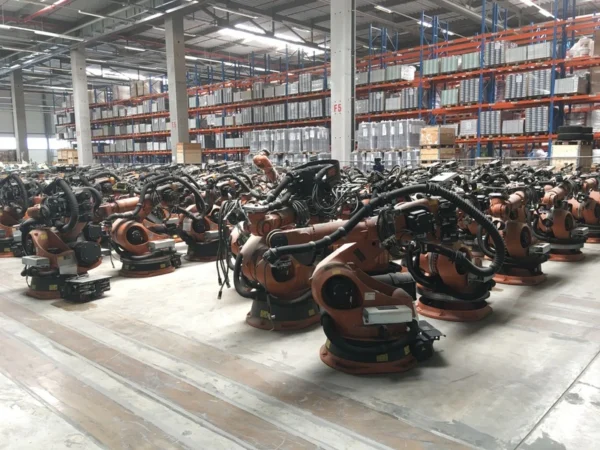

KR 210 KRC2 Ed05
| Brand | Kuka |
|---|---|
| Max. Load (kg) | 210 |
| Arm Reach (m) | 2.70 |
| Axis | 6 |
| Repeatability (mm) | 0.06 |
| Robot weight (kg) | 1250 |
| Mounting | Floor |
The KR 210 KRC2 Ed05 comprises a spherical work space, making it ideal for installations where space saving is sought. Equipped with KRC2 Ed05 controller running under Windows XP. The KRC2 Ed05 controller facilitates programming through the Microsoft Windows user interface. It is expandable, it can be integrated into networks via a bus. The KRC2 Ed05 controller is characterized by having open PC technology and network-compatible. It has free slots for installing additional axes, Device Net and Ethernet for common bus systems. It includes floppy drives and CD-ROMs for data backup Ease of operation and programming via the KUKA Control-Panel (KCP) with Windows user interface programming console.
| Technical Data: • Payload: 210 kg • Arm reach: 2700 mm |
Axis motion speed: • Axis 1: 86º/s • Axis 2: 84º/s • Axis 3: 84º/s • Axis 4: 100º/s • Axis 5: 110º/s • Axis 6: 184º/s |
Are you interested in this robot? Write to us!
