KR 200L140-2 Comp

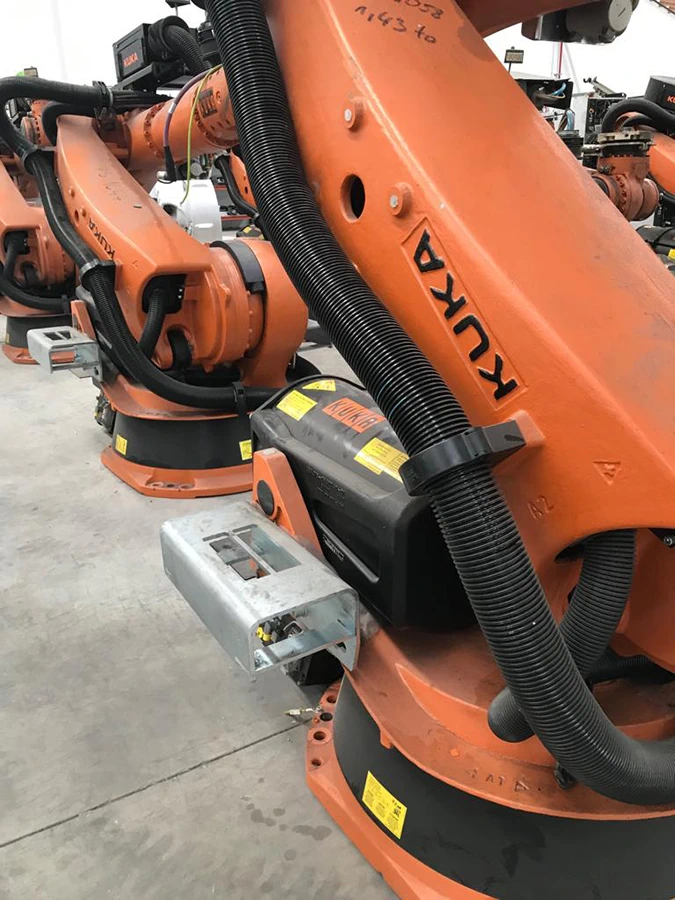

KUKA KR 200L140-2 Comp

Additional information

Brand

Kuka

Max. Load (kg)

140

Arm Reach (m)

2.80

Axis

6

Repeatability (mm)

0.15

Robot weight (kg)

1170

Mounting

Floor

The KUKA Comp heavy-duty robots comprise the following models: KUKA KR200-2 Comp, KR200L170-2 Comp and KR200L140-2 Comp. These robots are 6-axis and lighter and faster. They are equipped with a more powerful KRC2 ED05 controller. The KRC2 controller, 2005 edition (ED05), guarantees high reliability and continuous access to the benefits of KUKA's state-of-the-art technology. Up to two external axes can be integrated into the basic controller and up to six external axes into a higher-level controller. The controller is characterized by its easy maintenance, good accessibility, and modular structure, which allows components to be exchanged quickly and easily.

Technical Data:
• Payload: 140 kg
• Arm reach: 2800 mm
Axis motion speed:
• Axis 1: 89º/s
• Axis 2: 85º/s
• Axis 3: 79º/s
• Axis 4: 117º/s
• Axis 5: 120º/s
• Axis 6: 195º/s
