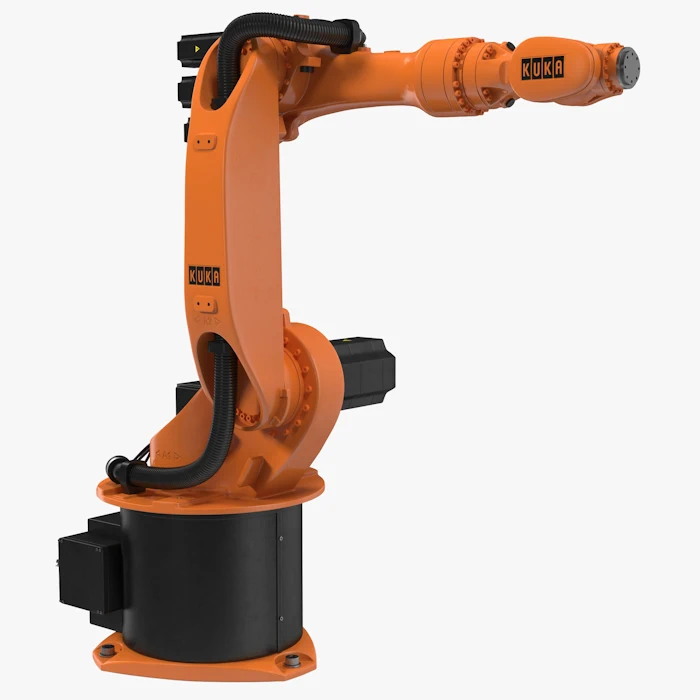

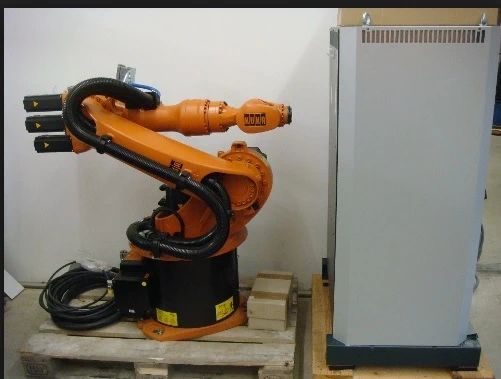

KUKA KRC2 KR 16
| Brand | Kuka |
|---|---|
| Max. Load (kg) | 16 |
| Arm Reach (m) | 1.61 |
| Axis | 6 |
| Repeatability (mm) | 0.05 |
| Robot weight (kg) | 250 |
| Mounting | Floor |
The KR 16 is ideal for high speed assembly applications, when parts need to be moved fast. The KR 16, due to its versatility and flexibility, is used effectively in most industrial sectors. Allowed for floor, ceiling and wall mounting. Offers top performance in any process - from material handling to welding, cutting, or coating. Video MAIN APPLICATIONS Material handling Machine tending Spot welding Palletizing Assembly Loading and unloading of parts.
| Technical Data: • Payload: 16Kg. • Arm Reach: 1611 mm. • Repeatability: 0.05 mm. • Controller: KRC2. |
Axis motion speed: • Axis 1: 192º/s • Axis 2: 173º/s • Axis 3: 192º/s • Axis 4: 329º/s • Axis 5: 332º/s • Axis 6: 789º/s |
Are you interested in this robot? Write to us!
