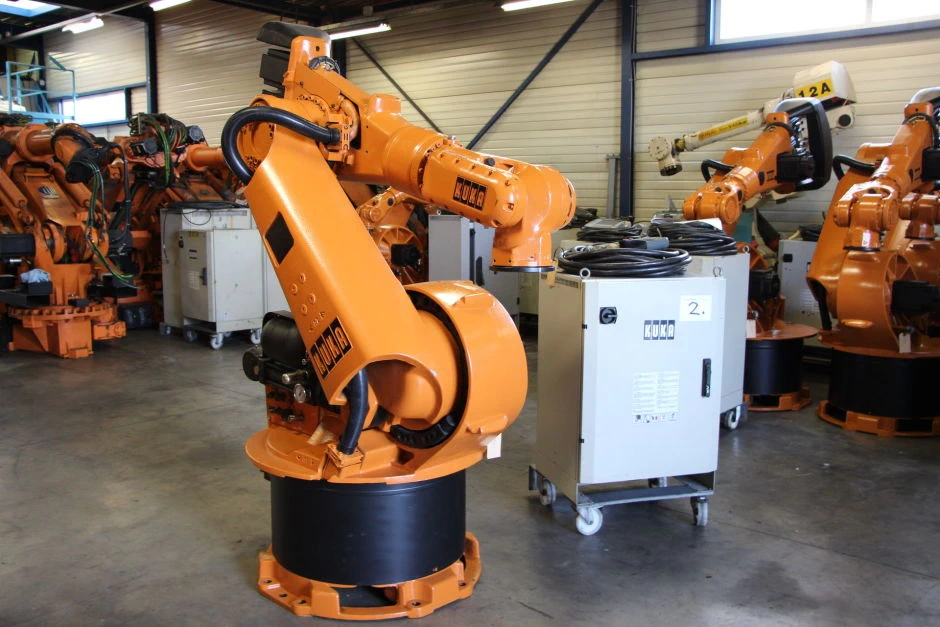

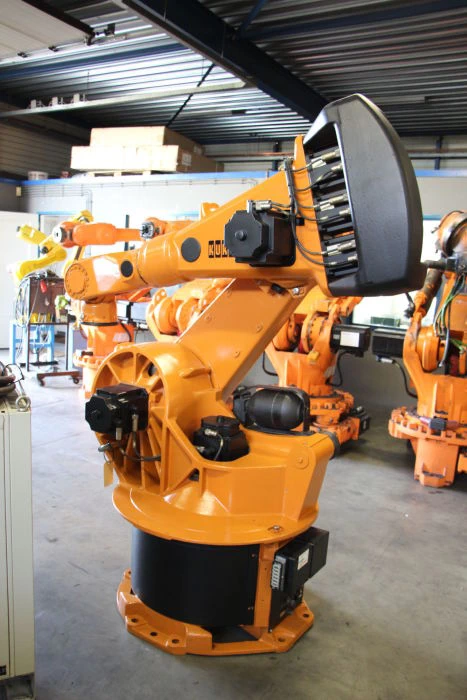

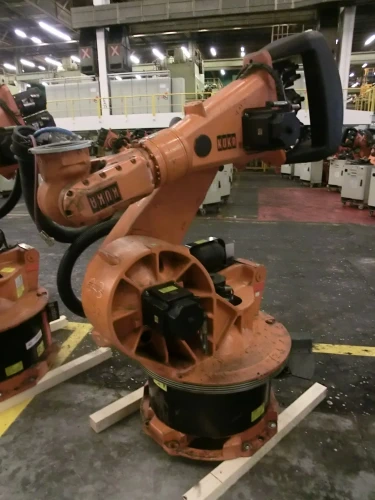

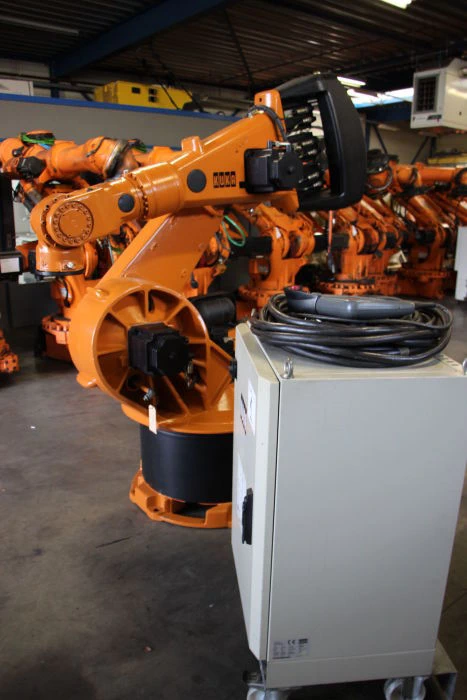

KUKA KR 125 – KR150
| Brand | Kuka |
|---|---|
| Max. Load (kg) | 150 |
| Arm Reach (m) | 2.80 |
| Axis | 6 |
| Repeatability (mm) | 0.20 |
| Robot weight (kg) | 1210 |
| Mounting | Floor |
The KR125, KR150 is a robot model for high payload. The arm reach for KR125/2 and KR150/2 robot goes from 2400 to 2800 mm, is ideal for applications where space saving as much as the cost savings is valued. Equipped with KRC1 controller running under Windows 95. * Open PC technology. * CAN / DeviceNet and Ethernet as standard. * Floppy disk and CD-ROM for back-up. * Programming via KUKA Control Panel (KCP) with Windows 95.
| Technical Data: • Payload: 120-150 kg • Arm reach: 2400-2600-2800 mm |
Axis motion speed: • Axis 1: 100º/s • Axis 2: 100º/s • Axis 3: 100º/s • Axis 4: 154º/s • Axis 5: 167º/s • Axis 6: 251º/s |
Are you interested in this robot? Write to us!
