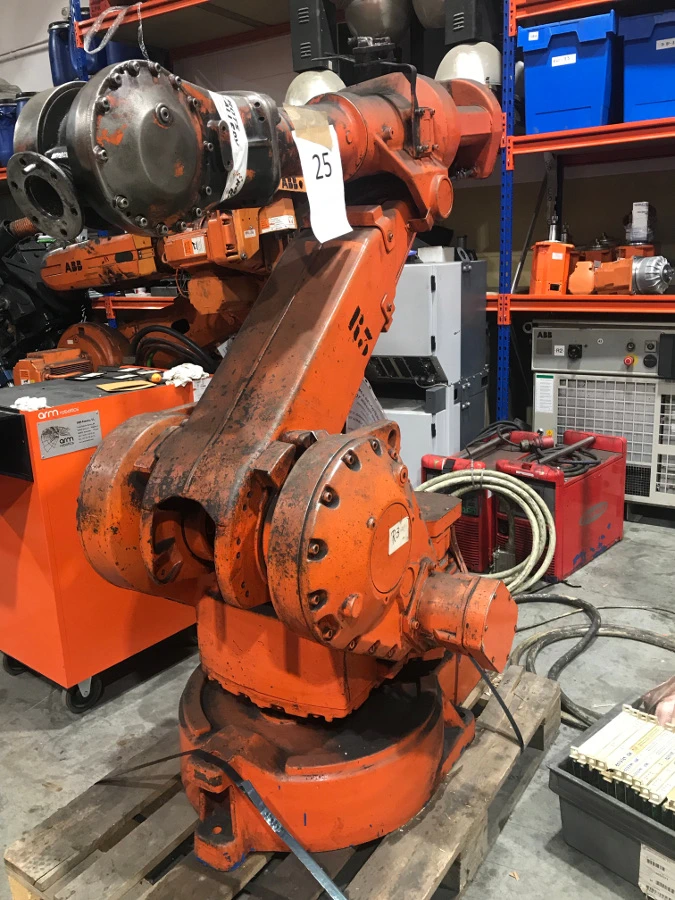

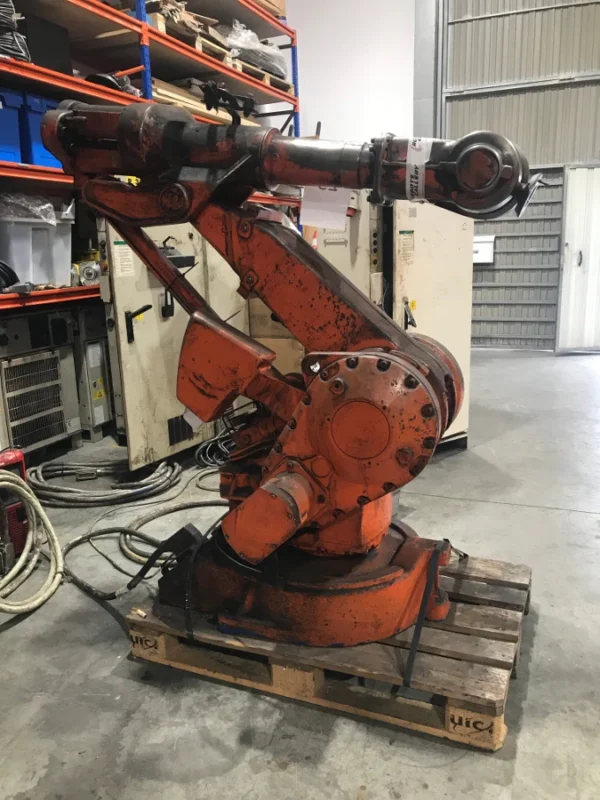

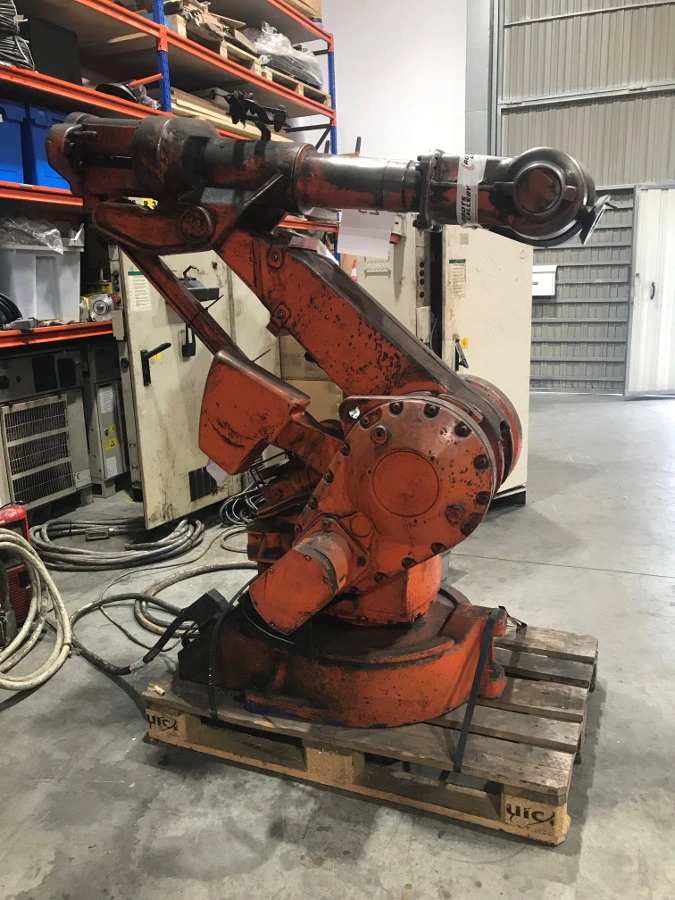

ABB IRB 4400 S4 M94-M96
| Brand | ABB |
|---|---|
| Max. Load (kg) | 45 |
| Arm Reach (m) | 1.95 |
| Axis | 6 |
| Repeatability (mm) | 0.10 |
| Robot weight (kg) | 1040 |
| Mounting | Floor |
The ABB IRB 4400 is an extremely fast and compact robot for handling medium and heavy loads. The load capacity of up to 45 Kg at very high speeds generally allows working with two pieces at once. The M94A version with the S4 controller allows the QUICK programming instruction to facilitate programming. Its design allows long intervals between different maintenance routine intervals. Due to its high maneuverability, the ABB IRB 4400 is highly suitable for tasks that require speed and flexibility

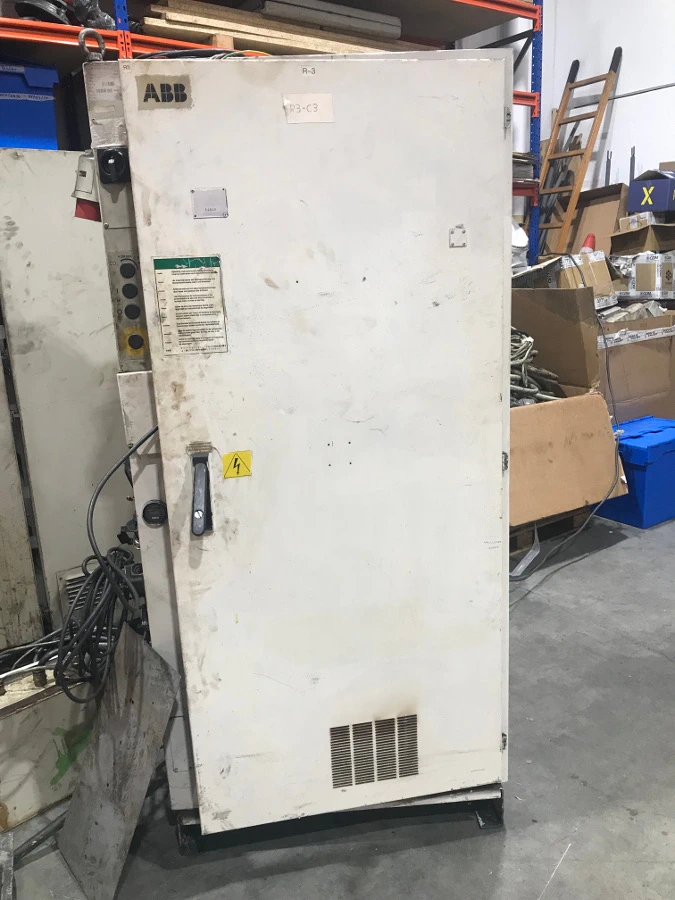

| Technical Data: • Payload: 45 Kg. • Maximum Reach: 1950 mm. • Repeatability: 0,1 mm. • Controller: M94A-M96 S4. |
Axis motion speed: • Axis 1: 150º/seg • Axis 2: 120º/seg • Axis 3: 120º/seg • Axis 4: 225º/seg • Axis 5: 225º/seg • Axis 6: 225º/seg |
Are you interested in this robot? Write to us!
