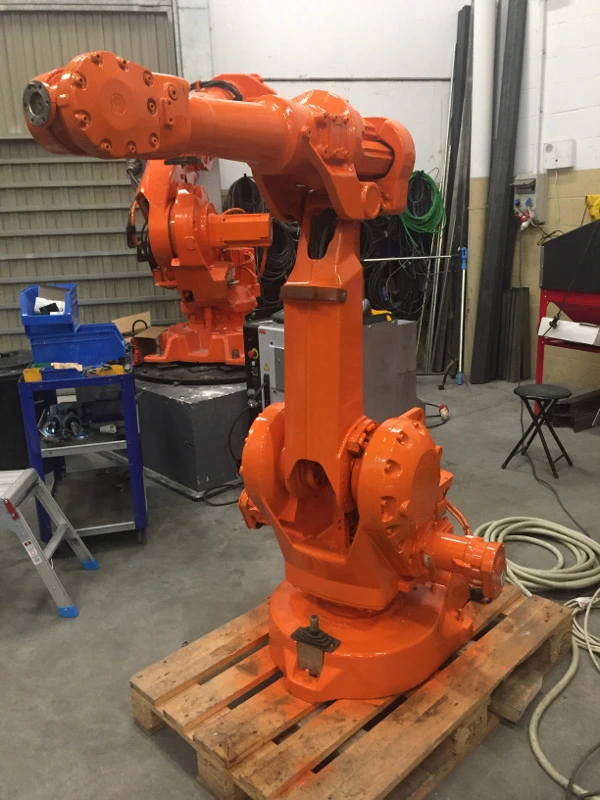

ABB IRB 2400/10 IRC5 M2004
| Brand | ABB |
|---|---|
| Max. Load (kg) | 12 |
| Arm Reach (m) | 1.50 |
| Axis | 6 |
| Repeatability (mm) | 0.05 |
| Robot weight (kg) | 380 |
| Mounting | Floor |
The IRB 2400 is the most popular industrial robot. This robot is equipped with the IRC5 controller. The IRC5 allows for RAPID instructions, flexible programming tasks, as well as other additional enhanced features. The IRB 2400/10 offers increased production rates, shorter lead times and faster delivery for your finished product. The IRB 2400/10 has a 1.50 meter reach, 12 kg load capacity. Because of this the IRB 2400/10 robot offers an excellent performance in the handling of materials. The most common applications are welding, handling, polishing and deburring, measurement and control, etc. All models offer inverted mounting capacity. The compact design of the IRB 2400 ensures easy installation.
| Technical Data: • Payload: 12Kg. • Arm Reach: 1500 mm. • Repeatability: 0.05 mm. • Controller: IRC5 M2004. |
Axis motion speed: • Axis 1: 150º/s • Axis 2: 150º/s • Axis 3: 150º/s • Axis 4: 360º/s • Axis 5: 360º/s • Axis 6: 450º/s |
